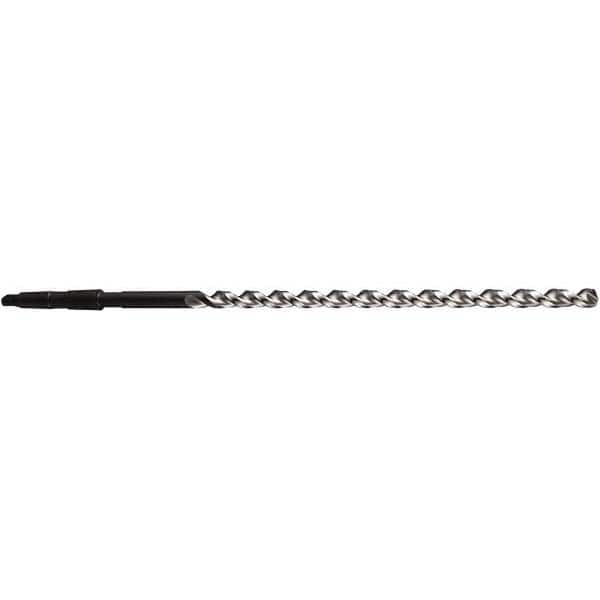

DORMER - 8.5mm, 1MT 130° Point High Speed Steel Taper Shank Drill Bit
Item #: 80989627
Brand: DORMER
Model #: 0423646
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 8.50 |
| Drill Bit Size (Decimal Inch) | 0.3346 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 1MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Parabolic |
| Overall Length (mm) | 330.00 |
| Flute Length (mm) | 210.00 |
| Flute Length (Decimal Inch) | 8.2740 |
| Cutting Direction | Right Hand |
| Point Type | PFX |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 1870-II |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.022 |
| Material Grade | M2 |
| Specification Designation | DIN |
| Series/List | A952 |
