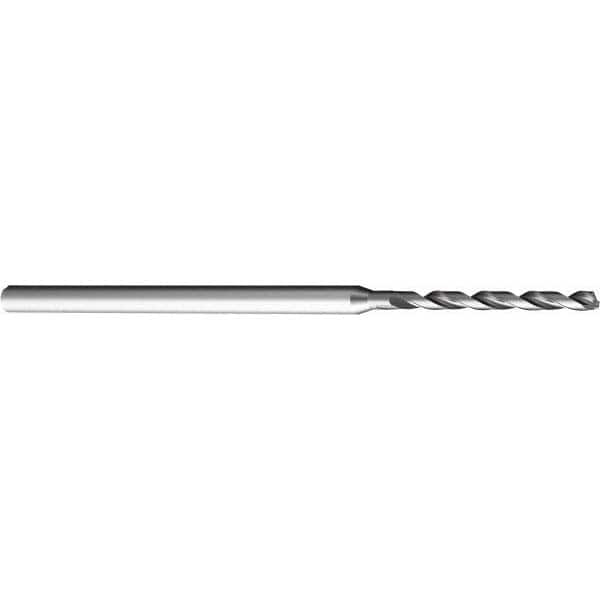

Sandvik Coromant - #49, 140° Point, Solid Carbide Micro Drill Bit
Item #: 49376247
Brand: Sandvik Coromant
Model #: 6151153
Features and Benefits
Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Slow spiral bits have wider flutes and used in heavier feeds. They are used on concrete and nonferrous materials including aluminum, brass, copper and cast iron.
Straight shanks are used for general purpose applications. The shank is smaller than the drill bit diameter. They are used with portable drills and drill presses on ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #49 |
| Drill Bit Size (Decimal Inch) | 0.0730 |
| Shank Diameter (mm) | 3.00 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.8347 |
| Flute Length (Decimal Inch) | 0.8661 |
| Through Coolant | Yes |
| Flute Type | Spiral |
| Spiral Type | Slow Spiral |
| Maximum Drilling Depth (mm) | 15.00 |
| Shank Length (mm) | 36.00 |
| Shank Type | Straight |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Drill Bit Grade | High Precision |
| Series/List | CoroDrill 862 |
