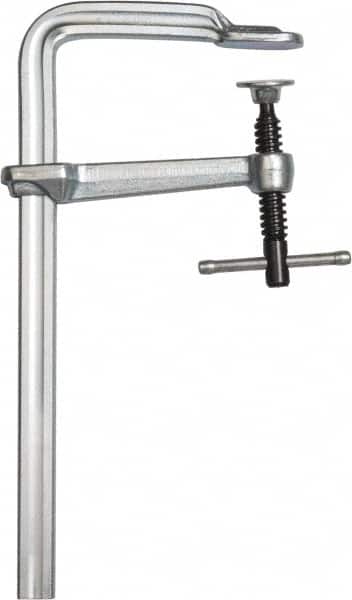

Gibraltar - 4-3/4" Throat Depth, 23-5/8" Max Capacity, Standard Sliding Arm Clamp - 1,650 Lb Clamping Pressure
Item #: 72599467
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Sliding arm clamps are used for holding a workpiece in place during an operation. The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action. An extender block or V-pad will be required for some applications.
T-handles are designed with threaded spindles allowing for maximum clamping pressure.
| Product Specifications | |
|---|---|
| Clamp Type | Standard |
| Maximum Capacity (mm) | 600.00 |
| Maximum Capacity (Inch) | 23-5/8 |
| Throat Depth (mm) | 120.65 |
| Throat Depth (Inch) | 4-3/4 |
| Throat Depth (Decimal Inch) | 4.7500 |
| Handle Style | T-Handle |
| Frame Material | Forged Steel |
| Clamping Pressure (Lb.) | 1650 |
| Series | SG |
| Spindle Material | Alloy Steel |
| Rail Size (mm) | 25.00 x 12.00 |
| Finish/Coating | Nickel/Chrome Plated |
| Pad Material | Forged Steel |
