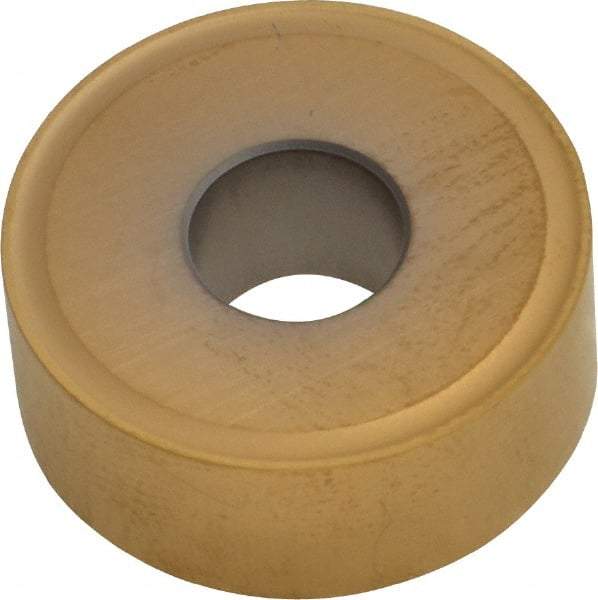

Seco - RNMG86 MR4 Grade TS2500 Carbide Turning Insert - TiAlN/TiN Finish, Round, 1" Inscr Circle, 3/8" Thick
Item #: 72494040
Brand: Seco
Model #: 39052
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 86 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | TS2500 |
| Coating | TiAlN/TiN |
| Material Grade | C5 |
| Chip Breaker | MR4 |
| Hole Diameter (Decimal Inch) | 0.3630 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
