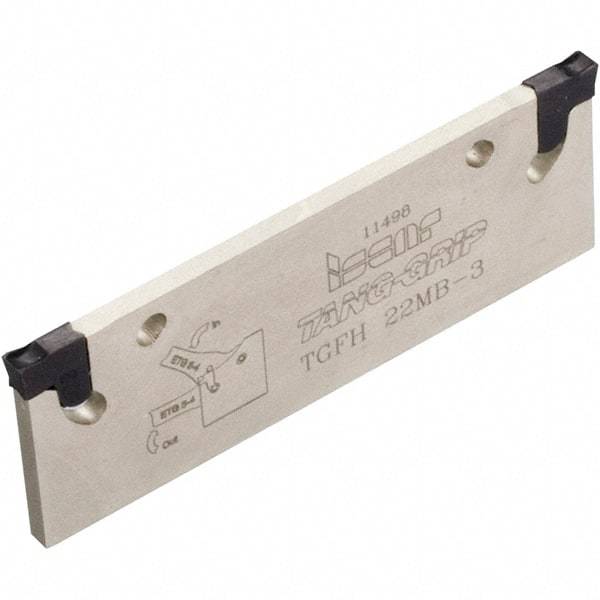

Iscar - 22.2mm Blade Height, 0.1339" Blade Width, 2.7559" OAL, Neutral Cut, Indexable Cut-Off Blade - 14mm Max Depth of Cut, TGFH Blade, Tang-Grip Series
Item #: 72483902
Brand: Iscar
Model #: 2390168
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Blade Height (mm) | 22.20 |
| Blade Width (mm) | 3.40 |
| Blade Width (Decimal Inch) | 0.1339 |
| Blade Overall Length (mm) | 70.00 |
| Blade Overall Length (Decimal Inch) | 2.7559 |
| Blade Style | TGFH |
| Insert Style | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
| Insert Width (mm) | 3.70 |
| Insert Width (Decimal Inch) | 0.1457 |
| Series | Tang-Grip |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Cutting Height (mm) | 22.20 |
| Cutting Height (Decimal Inch) | 0.8740 |
| Minimum Insert Width (mm) | 3.70 |
| Minimum Insert Width (Decimal Inch) | 0.1457 |
| Maximum Insert Width (mm) | 4.50 |
| Maximum Insert Width (Decimal Inch) | 0.1772 |
| Complete Insert Compatibility | TAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4J; TAG N4JT; TAG N4UT; TAG R4C-4D; TAG R4J-4D |
