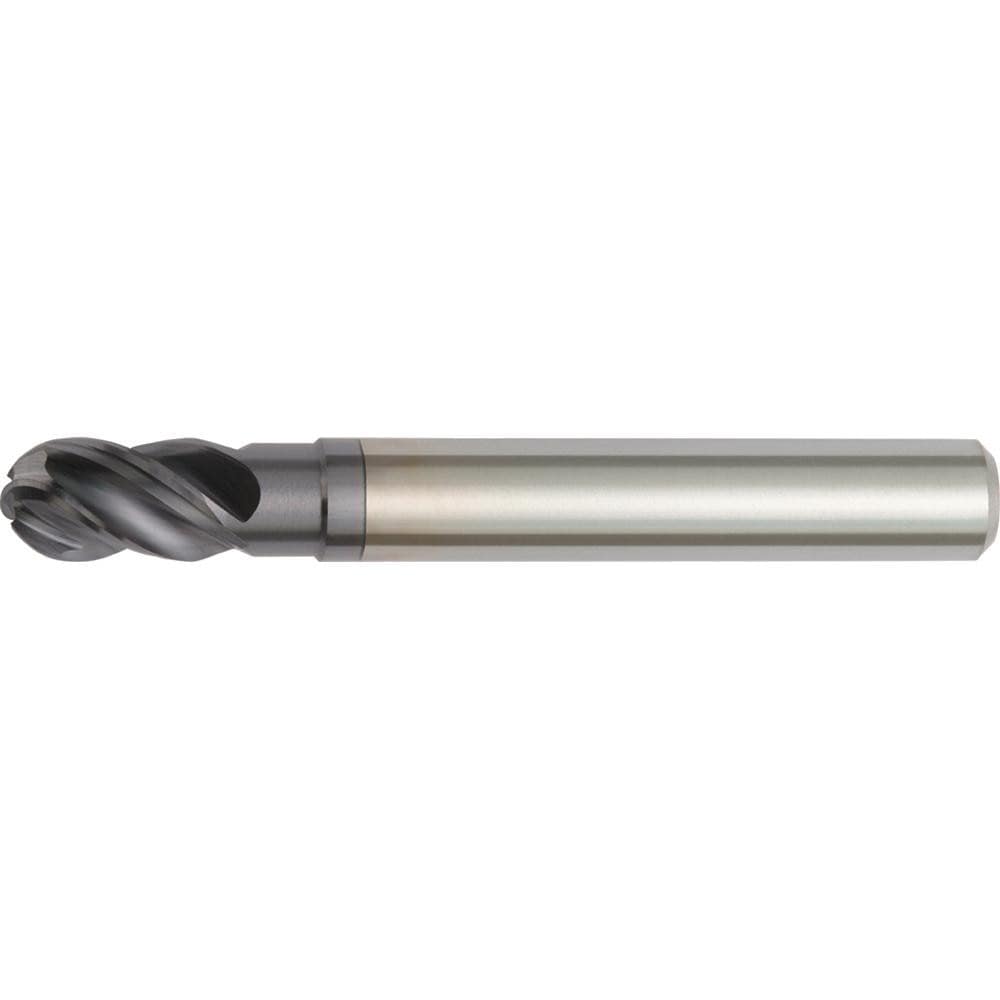

Ball End Mill: 5.00 mm Dia, 9.00 mm LOC, 4 Flute, Solid Carbide
Item #: 33979253
Brand: Widia
Model #: 2605589
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 9.00 |
| Coating/Finish | TiAlN |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 38 |
| Overall Length (mm) | 57.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Extended |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Nose Radius (mm) | 2.50 |
| Nose Radius (Decimal Inch) | 2.5000 |
| Neck Length (mm) | 6.00 |
| Reach Length (mm) | 15.00 |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | TiAlN-LT |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 47N0 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
| Manufacturers Catalog Number | 47N005002LT |
| System Of Measurement | Metric |
