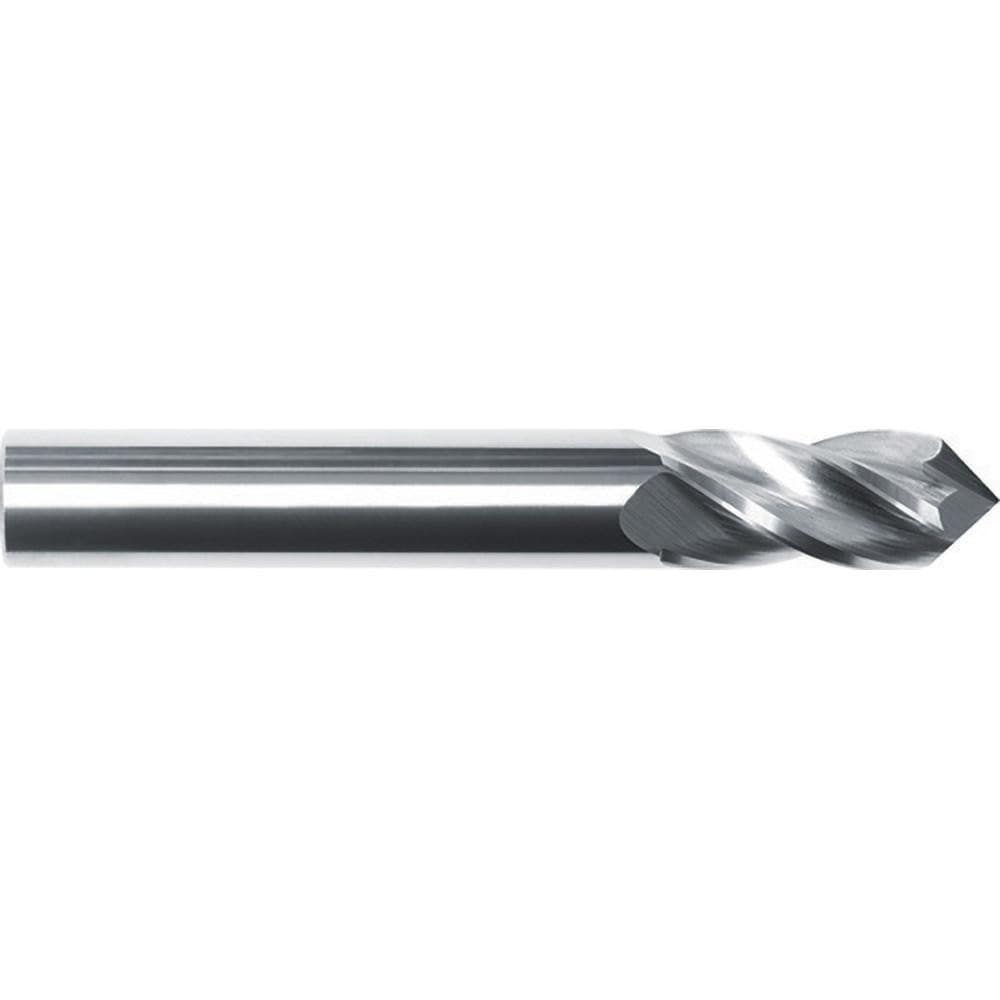

Drill Mills; Mill Diameter (Inch): 7/32; Mill Diameter (Decimal Inch): 0.2188; Length of Cut (Inch): 3/4; Number Of Flutes: 2; End Mill Material: Solid Carbide; Shank Diameter (Inch): 1/4
Item #: 37537263
Brand: Internal Tool
Model #: 49-2100
Product Specifications
| Mill Diameter (Inch) | 7/32 |
| Mill Diameter (Decimal Inch) | 0.2188 |
| Length of Cut (Inch) | 3/4 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Helix Angle | 30 |
| Point Angle | 120 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Primary Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 49 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coating/Finish | Natural |
| UNSPSC Code | 23241600 |
