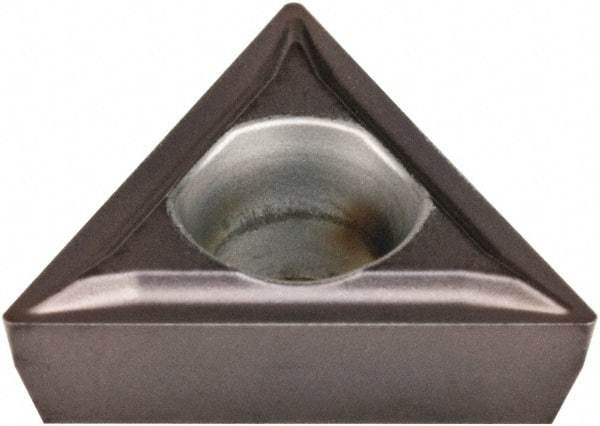

Kennametal - TPGT1.81.50.5 LF Grade KCU10 Carbide Turning Insert - AlTiN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 72169907
Brand: Kennametal
Model #: 4045321
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 1.81.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | LF |
| Hole Diameter (Decimal Inch) | 0.2000 |
| ISO Number | TPGT090202LF |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPGT181505LF |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P; K; N |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
