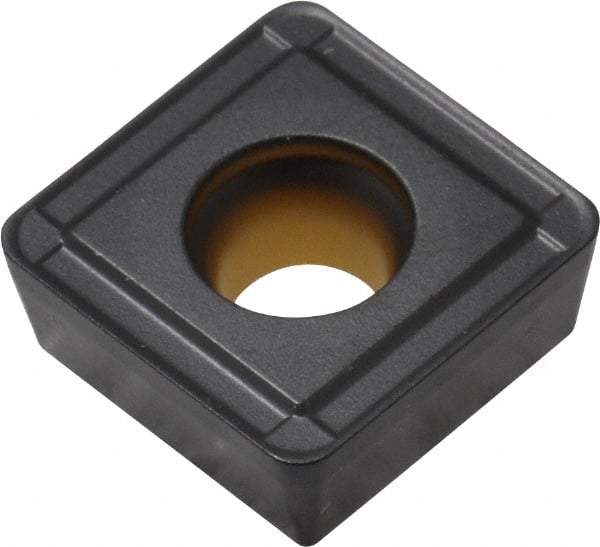

Kennametal - SPPX120412 HP Grade KCPK10 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, 0.494" Inscribed Circle
Item #: 72162837
Brand: Kennametal
Model #: 4042905
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPPX |
| Insert Size | 120412 |
| Material | Carbide |
| Manufacturer's Grade | KCPK10 |
| Inscribed Circle (Decimal Inch) | 0.4940 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Coating | TiCN/Al2O3 |
| Coating Process | CVD |
| Chipbreaker | HP |
