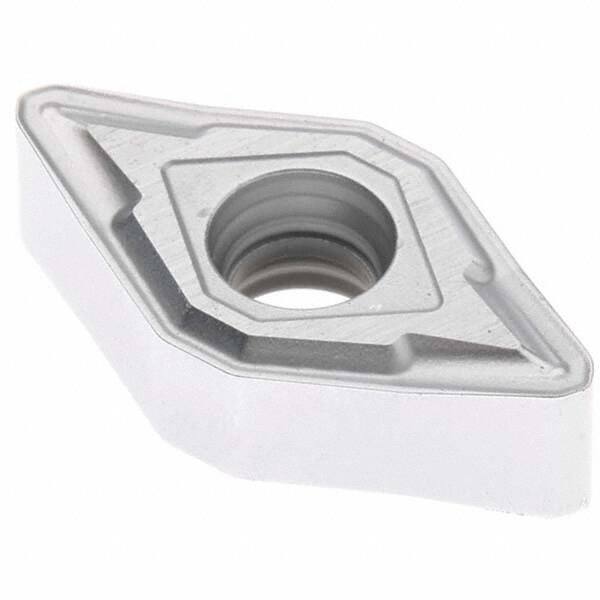

Seco - DNMX331 MF2 Grade TP25 Carbide Turning Insert
Item #: 96215157
Brand: Seco
Model #: 03310367
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMX |
| Insert Size | 331 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4567 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MF2 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Lead Angle | 93.000 |
| Rake | Negative |
| Rake Angle | 18 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMX331W-MF2 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DNMX |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| Shape | Diamond |
