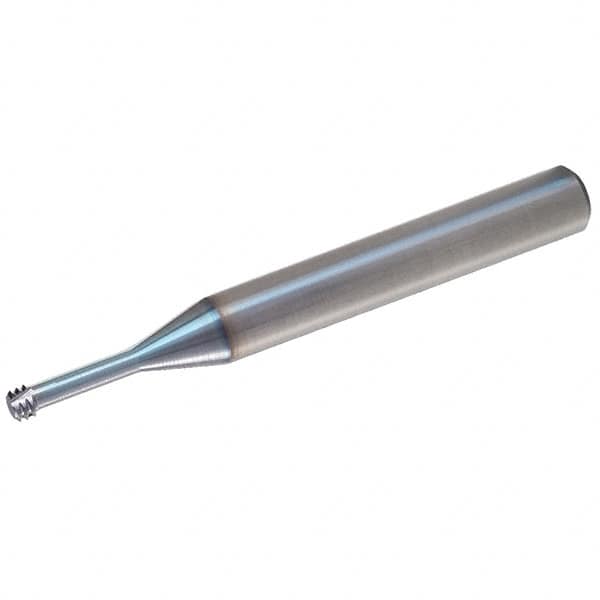

Vargus - #1-72 Thread, 1/4" Shank Diam, TiCN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2.244" OAL, #1 Min Noml Diameter
Item #: 71973986
Brand: Vargus
Model #: 80443
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 72 |
| Thread Size (Inch) | #1-72 |
| Minimum Nominal Diameter (Inch) | #1 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0570 |
| Finish/Coating | TiCN |
| Length of Cut (Decimal Inch) | 0.0420 |
| Thread Standard | UN |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2440 |
| Through Coolant | No |
| Material Grade | Micrograin |
