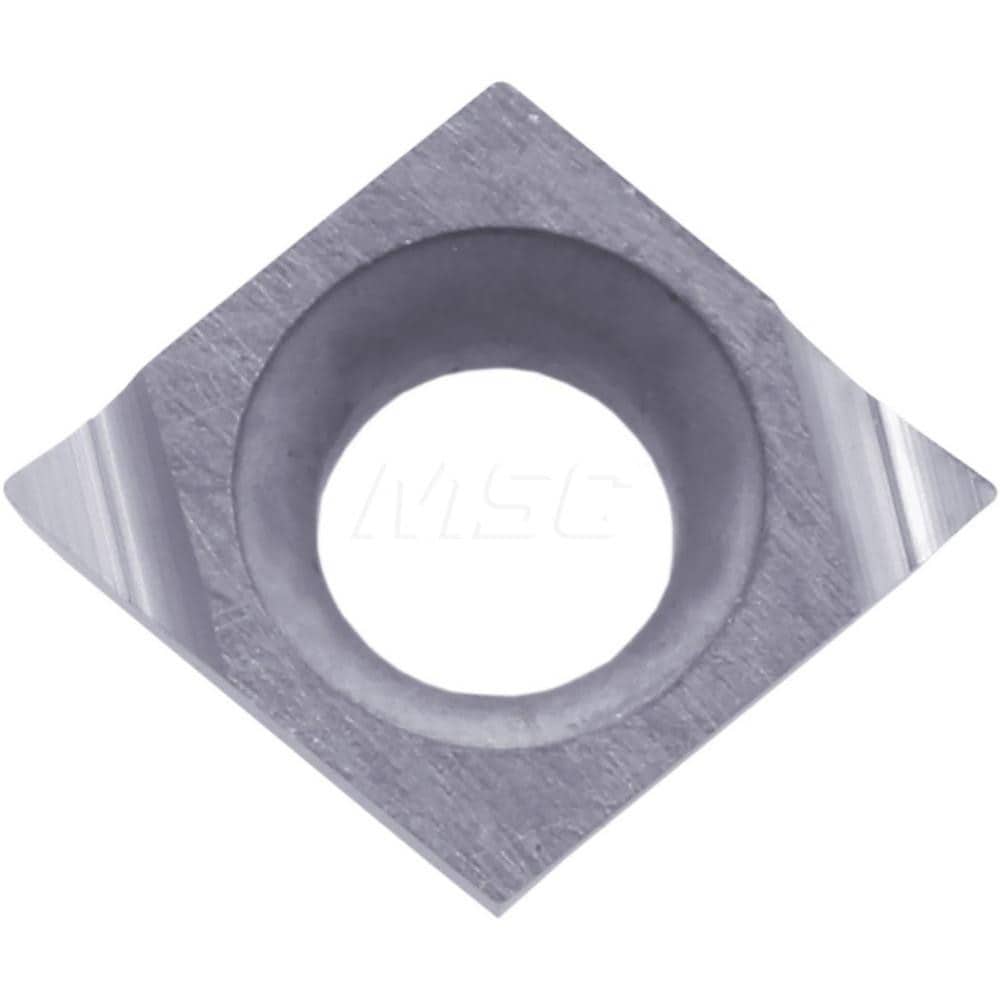

Boring Inserts; Insert Style: CCGT; Insert Size Code: 11091; Insert Material: Carbide; Material Grade: M40, M20, M30, P30, M10, P10, P20; Manufacturer Grade: PR1225
Item #: 18252007
Brand: Kyocera
Model #: TKE01347
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 11091 |
| Insert Material | Carbide |
| Material Grade | M40; M20; M30; P30; M10; P10; P20 |
| Manufacturer Grade | PR1225 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Hole Diameter (Decimal Inch) | 0.0748 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | CCGT030104MR-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TKE01347 |
| Length (Decimal Inch - 4 Decimals) | 0.1380 |
| Width (Decimal Inch - 4 Decimals) | 0.138 |
| Coating/Finish | MEGACOAT |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0460 |
