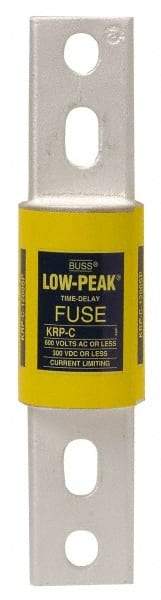

Cooper Bussmann - 300 VDC, 600 VAC, 750 Amp, Time Delay General Purpose Fuse - Fuse Holder Mount, 8-5/8" OAL, 100 at DC, 300 at AC (RMS) kA Rating, 2-25/64" Diam
Item #: 71918304
Brand: Cooper Bussmann
Model #: KRP-C-750SP
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | L |
| Amperage | 750 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (Inch) | 8-5/8 |
| Overall Length (Decimal Inch) | 8.6300 |
| Overall Diameter (Inch) | 2-25/64 |
| Overall Diameter (Decimal Inch) | 2.5300 |
| Mounting Type | Fuse Holder |
| Interrupting Rating (kA) | 100 @ DC; 300 @ AC (RMS) |
| Standards Met | CE Certified; CSA C22.2 No. 248.10; CSA Class 1422-02 File 53787 Certified; RoHS Compliant; UL Listed Guide JDDZ File E4273 |
