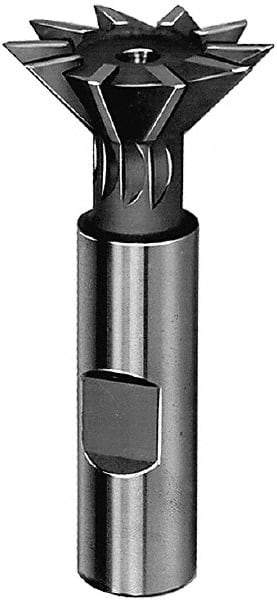

Made in USA - 1-7/8" Diam x 1/2" Width of Cut, 45° Included Angle, High Speed Steel Dovetail Cutter - 7/8" Shank Diam, 2-3/4" Shank Length, 3-1/4" Overall Length, Weldon Flat, TiN Coated
Item #: 71834949
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Included Angle | 45 |
| Cutting Diameter (Inch) | 1-7/8 |
| Cutting Diameter (Decimal Inch) | 1.8750 |
| Cutting Width (Inch) | 1/2 |
| Cutting Width (Decimal Inch) | 0.5000 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 7/8 |
| Overall Length (Inch) | 3-1/4 |
| Shank Length (Inch) | 2-3/4 |
| Number of Teeth | 12 |
| Weldon Flat | Yes |
