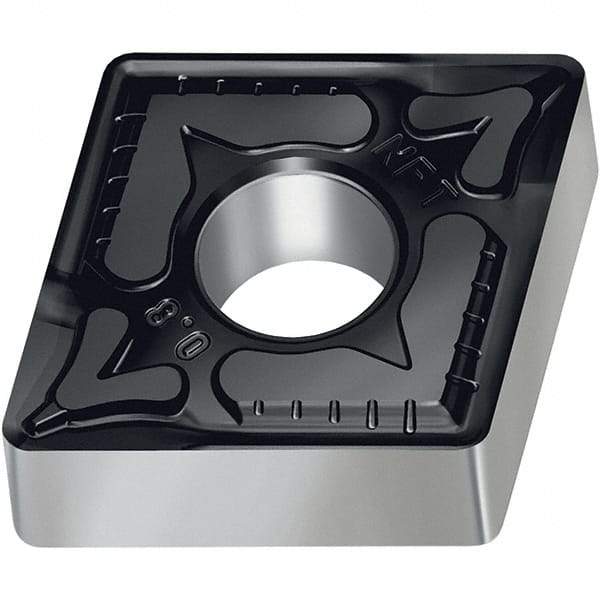

Walter - CNMG432 NFT Grade WS10 Carbide Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 71746838
Brand: Walter
Model #: 5381296
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications | |
---|---|
Insert Style | CNMG |
Insert Size | 432 |
Material | Carbide |
Length (mm) | 12.90 |
Length (Decimal Inch) | 0.5080 |
Inscribed Circle (Decimal Inch) | 0.5000 |
Inscribed Circle (Inch) | 1/2 |
Thickness (Inch) | 3/16 |
Thickness (Decimal Inch) | 0.1875 |
Corner Radius (Inch) | 1/32 |
Corner Radius (Decimal Inch) | 0.0313 |
Manufacturer's Grade | WS10 |
Coating | Uncoated |
Material Grade | S10 |
Chip Breaker | NFT |
ISO Number | CNMG120408-NFT |
Rake | Negative |
Relief Angle | 0 |
Manufacturers Catalog Number | CNMG432-NFT |
Primary Workpiece Material | S |
Secondary Workpiece Material | None |
Included Angle | 80 |
Series | Tiger-tec |
Maximum Depth of Cut (mm) | 2.01 |
Maximum Depth of Cut (Decimal Inch) | 0.0790 |
Insert Holding Method | Pin & Clamp |
Cutting Edge Style | Sharp |
Multi Use Application | Turning |
MultiUseTool | Yes |
Shape | Diamond |
