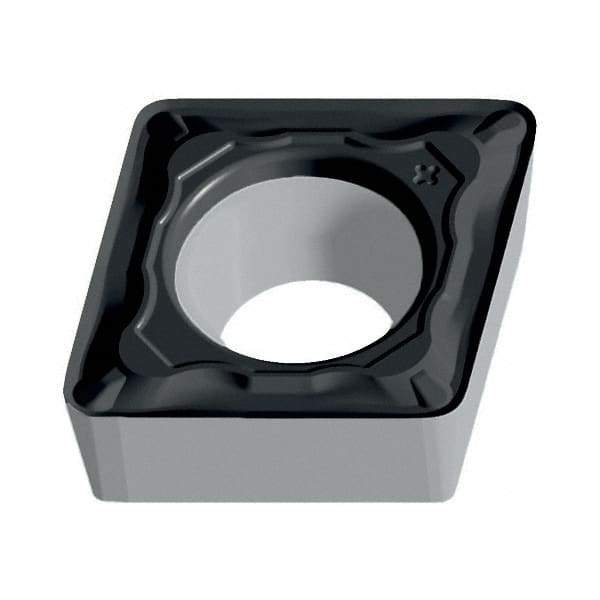

Walter - CCMT21.51 PF Grade WPP01 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 71743397
Brand: Walter
Model #: 5262921
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 6.45 |
| Length (Decimal Inch) | 0.2540 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WPP01 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P01/K10 |
| Chip Breaker | PF |
| ISO Number | CCMT060204-PF |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CCMT2(1.5)1-PF |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 80 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 1.98 |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
