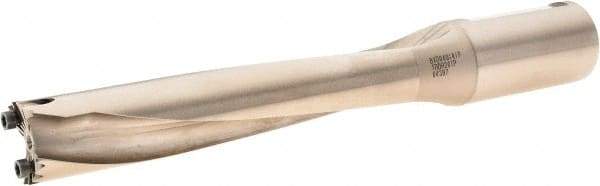

Sumitomo - 26.81 to 27.8mm Diam, 5xD, 5.945" Max Depth, 1-1/4" Shank Diam, 6.877" Flute, 9-1/4" OAL, Replaceable Tip Drill - Series SMD
Item #: 71523666
Brand: Sumitomo
Model #: 5L00W1E
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 26.81 |
| Minimum Drill Diameter (Decimal Inch) | 1.0555 |
| Maximum Drill Diameter (mm) | 27.80 |
| Maximum Drill Diameter (Decimal Inch) | 1.0945 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.9450 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 6.8770 |
| Body Length (Decimal Inch) | 6.8770 |
| Overall Length (Decimal Inch) | 9.2520 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 2.3750 |
