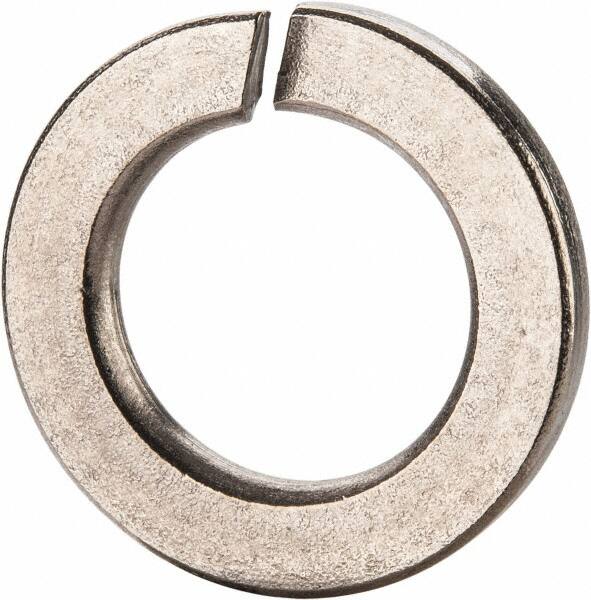

Value Collection - M16, 16.2mm ID, 27.4mm OD, 3.5mm Thick Split Lock Washer - 316 Austenitic Grade A4 Stainless Steel, Uncoated, 16.2mm Min ID, 17mm Max ID, 27.4mm Max OD
Item #: 71430706
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M16 |
| Material | Stainless Steel |
| Material Grade | 316; Austenitic Grade A4 |
| Finish/Coating | Uncoated |
| Inside Diameter (mm) | 16.20 |
| Outside Diameter (mm) | 27.40 |
| Thickness (mm) | 3.50 |
| Minimum Inside Diameter (mm) | 16.20 |
| Maximum Inside Diameter (mm) | 17.00 |
| Maximum Outside Diameter (mm) | 27.40 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (mm) | 3.50 |
| Fastener Standard | DIN 127B |
