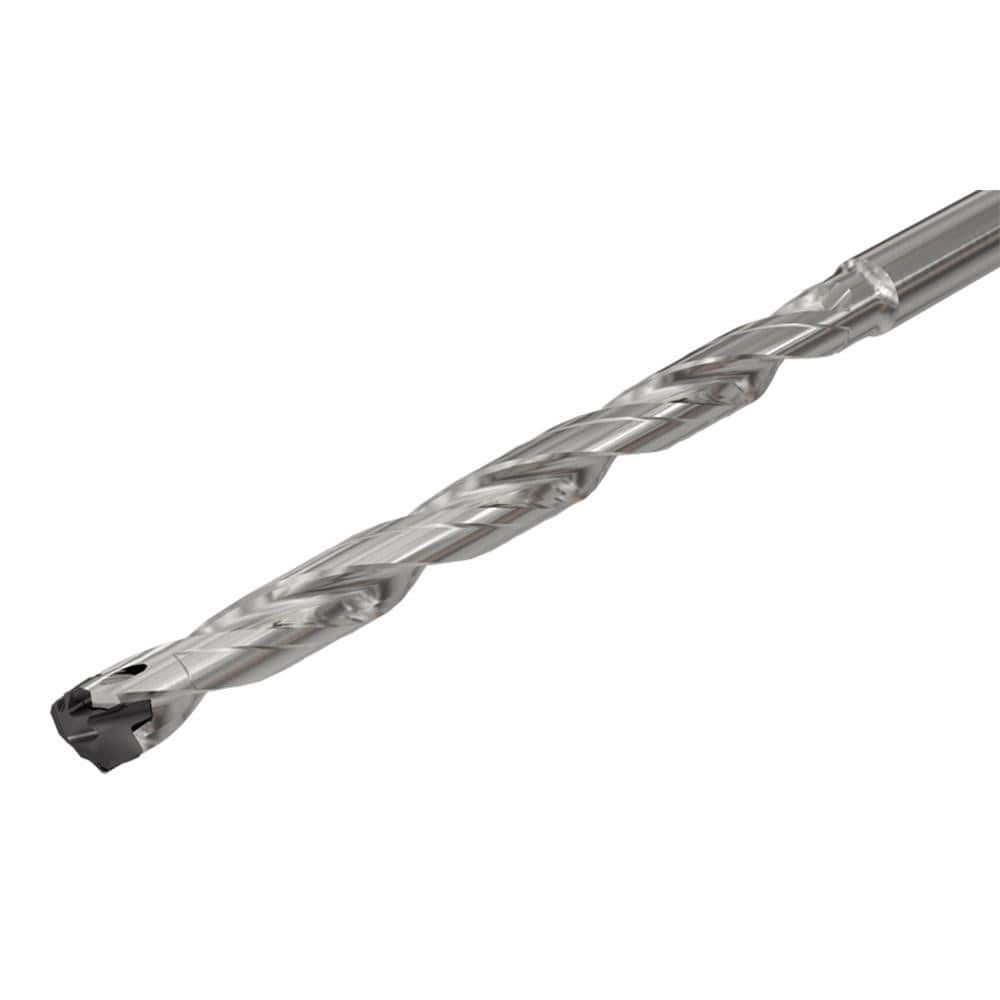

Replaceable Tip Drill: 6.5 to 6.9 mm Drill Dia, 79.18 mm Max Depth, 8 mm Straight-Cylindrical Shank Uses ICP Inserts, 126.3 mm OAL, Through Coolant
Item #: 71409361
Brand: Iscar
Model #: 3375504
Product Specifications
| Minimum Drill Diameter (mm) | 6.50 |
| Maximum Drill Diameter (mm) | 6.90 |
| Maximum Drill Depth (mm) | 79.18 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 8.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 6.5 |
| Overall Length (mm) | 126.30 |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (mm) | 79.18 |
| Body Length | 90.50 |
| Shank Length (mm) | 36.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
