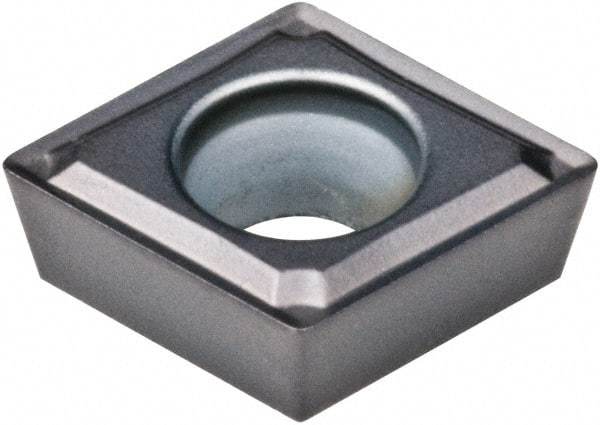

Kennametal - CPMT21.52 FW Grade KCU10 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 71367973
Brand: Kennametal
Model #: 4045229
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | FW |
| Hole Diameter (Decimal Inch) | 0.8000 |
| ISO Number | CPMT060208FW |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPMT2152FW |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
