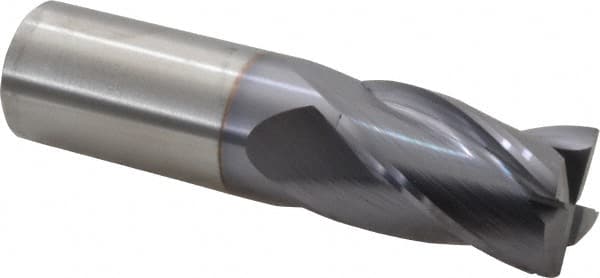

Kennametal - 1" Diam, 1-1/2" Length of Cut, 1" Shank Diam, 4" OAL, 4 Flute Solid Carbide Square End Mill
Item #: 71334734
Brand: Kennametal
Model #: 1272905
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Shank Diameter (Inch) | 1 |
| Single or Double End | Single |
| Overall Length (Inch) | 4 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Spiral |
| Length Type | Regular |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.003 |
| Manufacturer Grade | KC635M |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | +0.0000/-0.0005 |
| Series/List | HEC |
