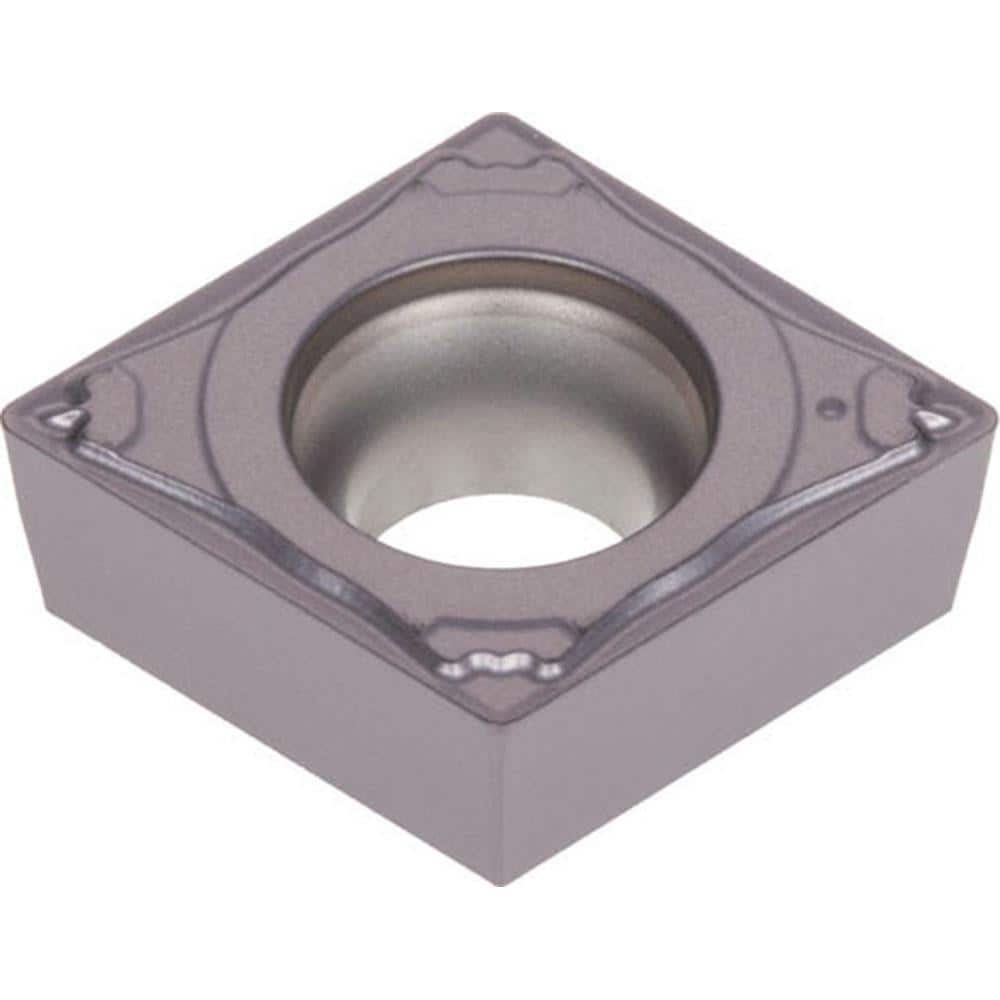

Turning Insert: CCMT21.50.5PF GT9530, Cermet TiCNO Finish, Neutral, 0.2560″ Long, 1/4″ Inscribed Circle, 0.0080″ Corner Radius, N/A Diamond, Series CCMT
Item #: 71208086
Brand: Tungaloy
Model #: 6998284
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 21.50.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | GT9530 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Relief Angle | 7 |
| Series | CCMT |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2560 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Chip Breaker | PF |
| Coating/Finish | TiCNO |
