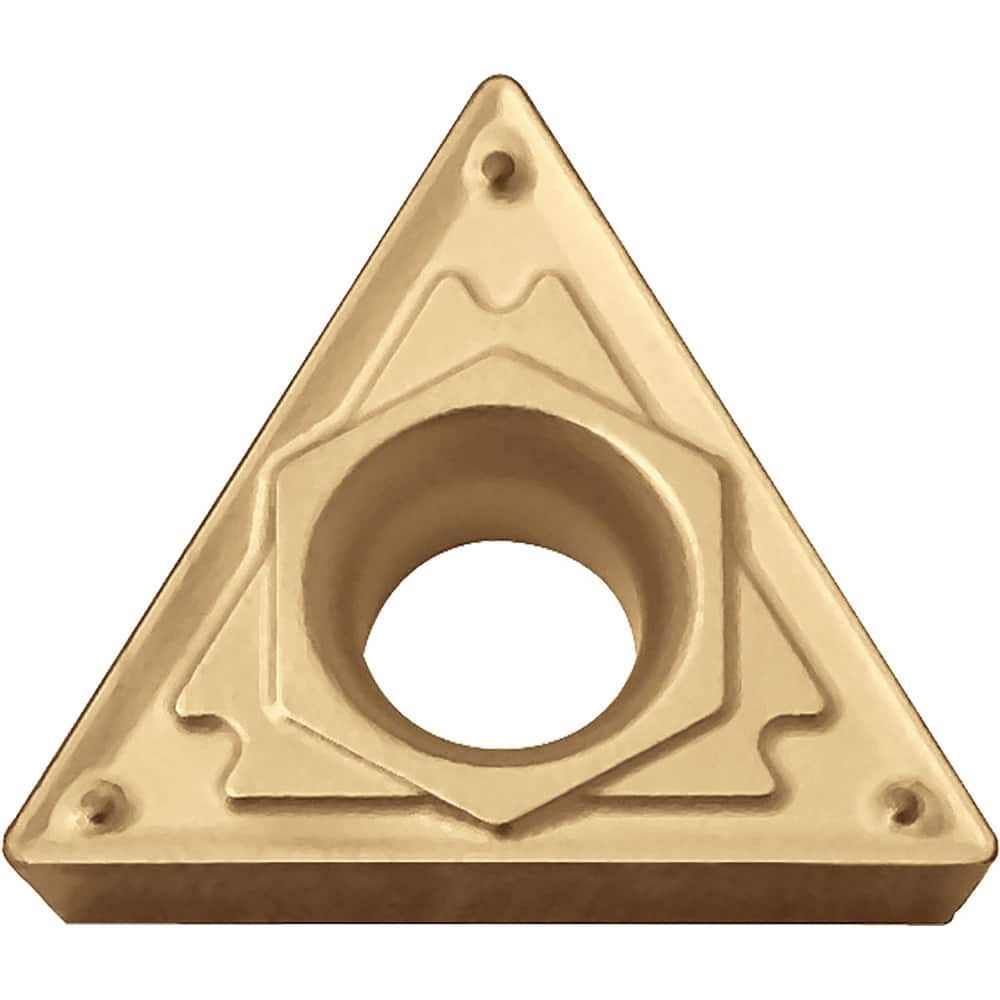

TCMT16T304HQ CA5525 Carbide Turning Insert TiCl2O3/TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 5/32″ Thick, 60° Triangle, Series CA55
Item #: 71163158
Brand: Kyocera
Model #: TJR05900
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 3251 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | CA5525 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | CA55 |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | TCMT3251HQCA5525 |
| Chip Breaker | T |
| Multi-Use Tool | No |
| Coating/Finish | TiCl2O3; TiN |
