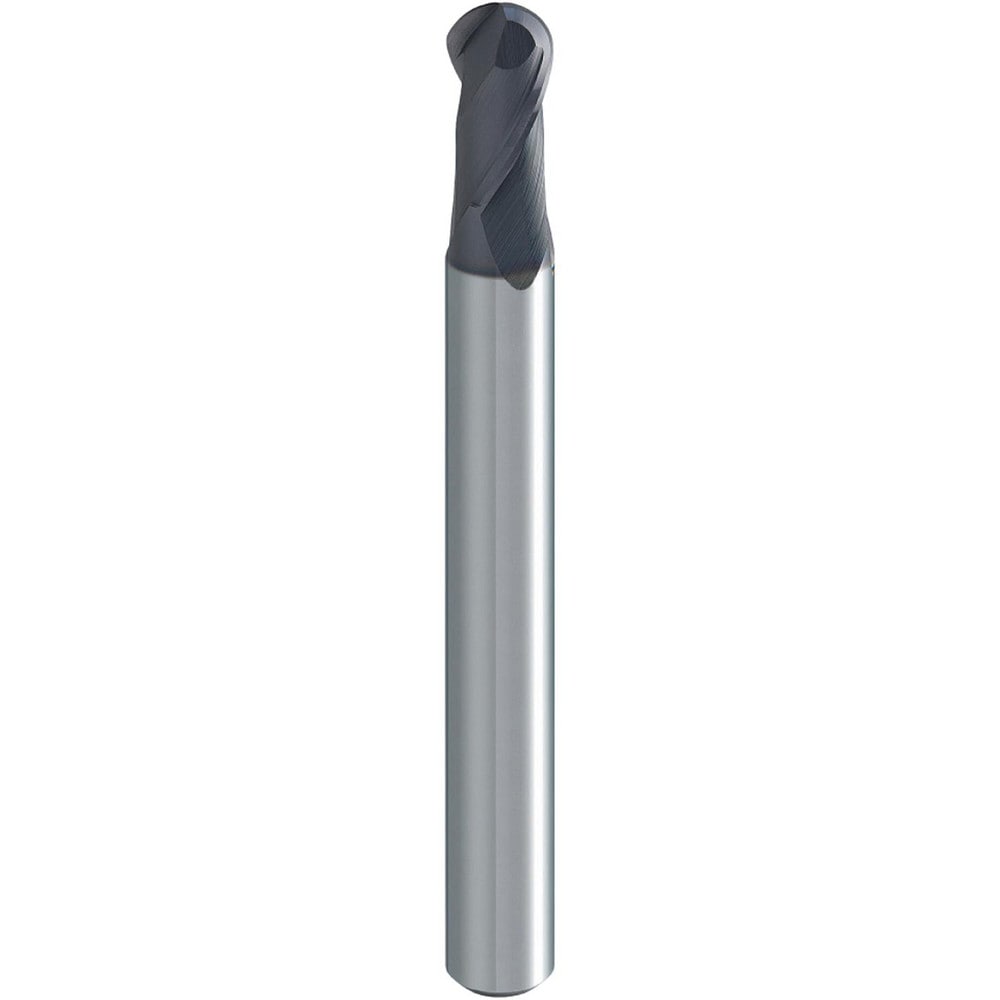

Ball End Mill: 3.50 mm Dia, 8.00 mm LOC, 2 Flute, Solid Carbide
Item #: 86518420
Brand: Mitsubishi
Model #: 826321
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1378 |
| Mill Diameter (mm) | 3.50 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 8.00 |
| Coating/Finish | AlTiCrN |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Nose Radius (mm) | 1.75 |
| Nose Radius (Decimal Inch) | 0.0689 |
| Neck Length (Decimal Inch) | 0.3150 |
| Neck Length (mm) | 8.00 |
| Shank Diameter Tolerance | h5 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Titanium Alloy |
| Secondary Workpiece Material Code | S; M; N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | MP |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3150 |
| System Of Measurement | Metric |
| Country of Origin | Japan |
