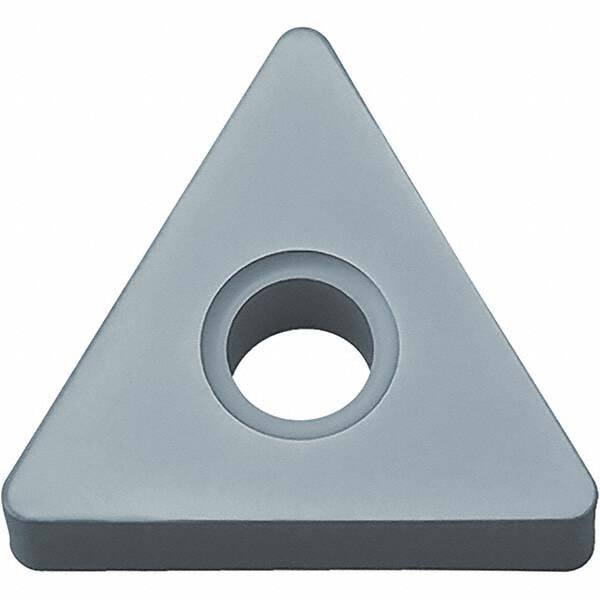

Kyocera - TNMA331 Grade TN620 Cermet Turning Insert
Item #: 11386596
Brand: Kyocera
Model #: 8862719
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 331 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMA160404 |
| Rake | Negative |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | TNMA331 TN620 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | TNMA |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Copying, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
