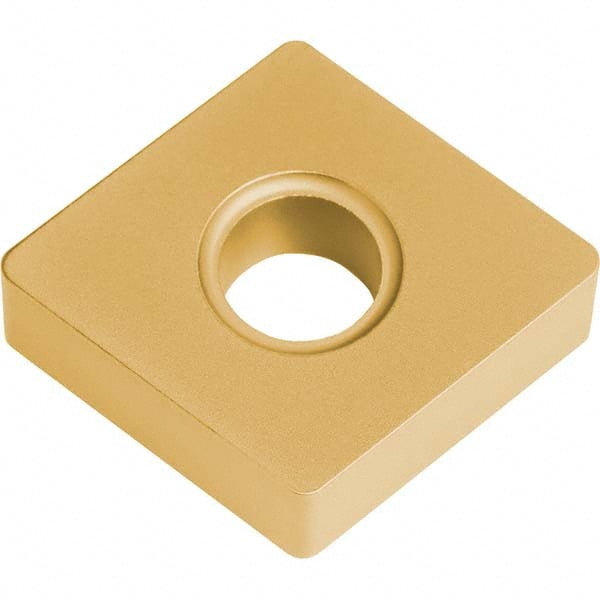

Kyocera - CNMA432 Grade CCX Cermet Turning Insert
Item #: 96192117
Brand: Kyocera
Model #: 8863063
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMA |
| Insert Size | 432 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CCX |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMA120408 |
| Rake | Negative |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMA432 CCX |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Material | Cermet |
| Corner Radius (Decimal Inch) | 1/32 |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Material | Cermet |
| Manufacturer's Grade | CCX |
| Insert Style | CNMA |
| Insert Size | 432 |
| Shape | Diamond |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Material | Cermet |
| Manufacturer's Grade | CCX |
| Insert Style | CNMA |
| Insert Size | 432 |
| Series | CNMA |
| Series | CNMA |
| Insert Hand | Neutral |
| Series | CNMA |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
