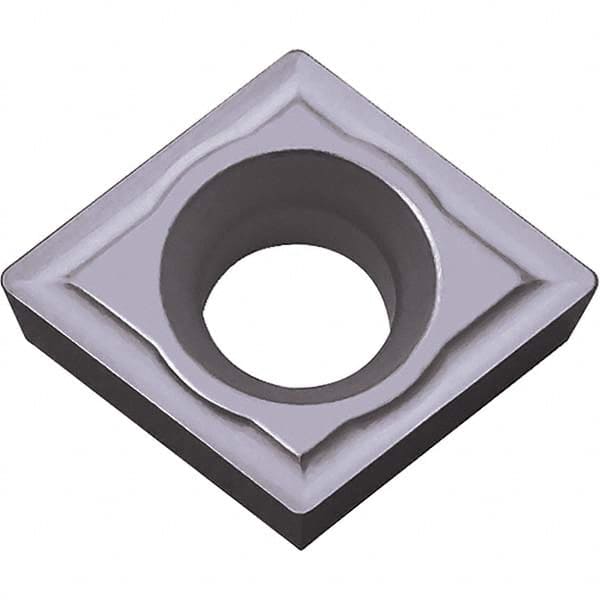

Kyocera - CPMH25151 Grade PR1725 Carbide Turning Insert
Item #: 96189964
Brand: Kyocera
Model #: 8863364
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMH |
| Insert Size | 25151 |
| Material | Carbide |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Hole Diameter (Decimal Inch) | 0.1378 |
| ISO Number | CPMH080204 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CPMH25151 PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CPMH |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
