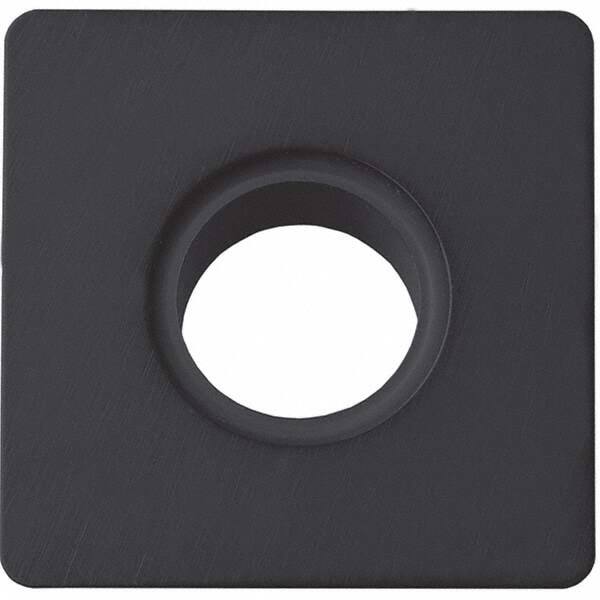

Kyocera - SNGA432 Grade KS6015 Ceramic Turning Insert
Item #: 96191838
Brand: Kyocera
Model #: 8863023
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNGA |
| Insert Size | 432 |
| Material | Ceramic |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | KS6015 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | SNGA120408T02025 |
| Rake | Negative |
| Manufacturers Catalog Number | SNGA432T00825 KS6015 |
| Primary Workpiece Material | K |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | SNGA |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Square |
