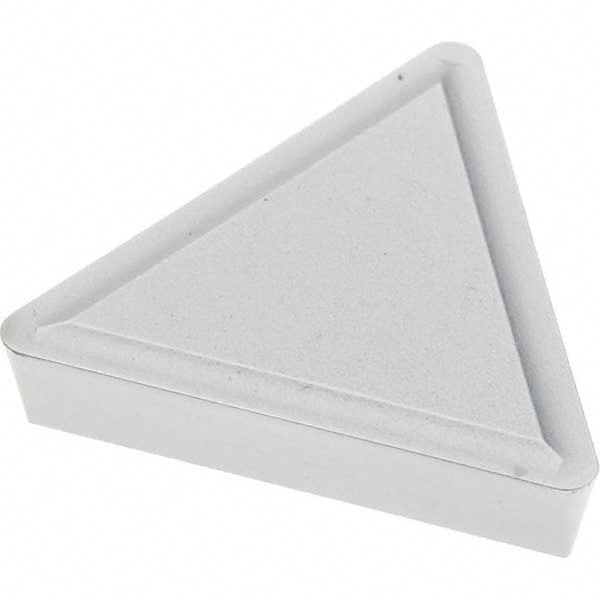

Seco - TPMR321 F1 Grade TP25 Carbide Turning Insert
Item #: 96216684
Brand: Seco
Model #: 03276605
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 321 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | F1 |
| ISO Number | TPMR160304-F1 |
| Lead Angle | 93.000 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TPMR321-F1 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | TPMR |
| Maximum Depth of Cut (Decimal Inch) | 0.6120 |
| Cutting Edge Style | Honed |
| Shape | Triangle |
