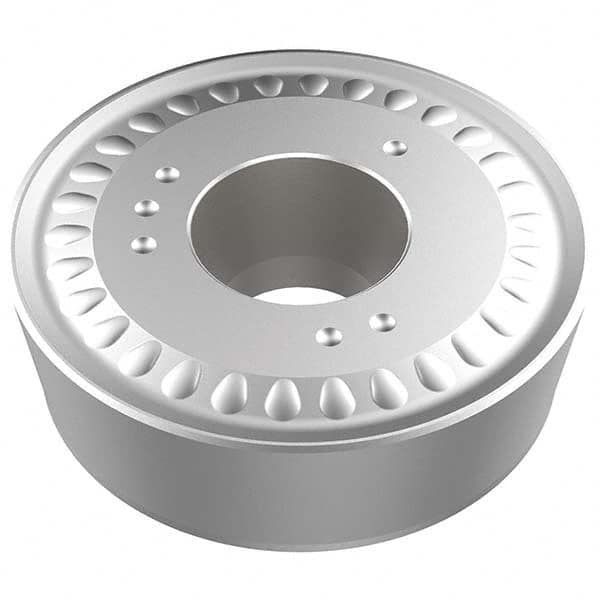

Seco - RCMX320900 RR93 Grade TP25 Carbide Turning Insert
Item #: 96216833
Brand: Seco
Model #: 03276571
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 320900 |
| Material | Carbide |
| Length (mm) | 32.00 |
| Length (Decimal Inch) | 1.2598 |
| Inscribed Circle (mm) | 32.00 |
| Thickness (Inch) | 3/8 |
| Corner Radius (mm) | 16 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | RR93 |
| Hole Diameter (mm) | 9.50 |
| ISO Number | RCMX320900-RR93 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMX320900-RR93 |
| Included Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | RCMX |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| Shape | Round |
