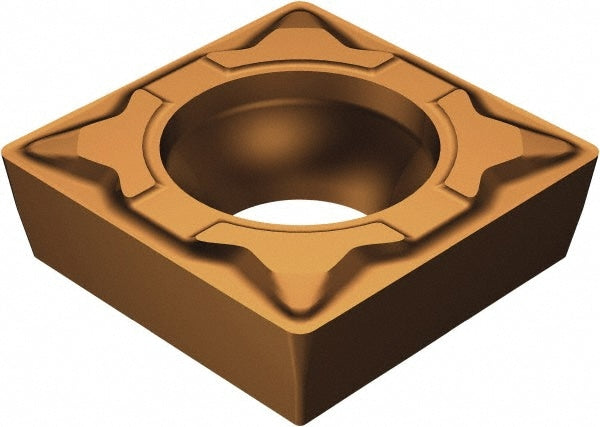

Turning Insert: SCMT32.51-MF 1125, Carbide
Item #: 52087665
Brand: Sandvik Coromant
Model #: 5748688
Product Specifications
| ANSI Insert Code | SCMT32.51 |
| ISO Insert Code | SCMT09T304 |
| Relief Angle | 7 |
| Insert Style | SCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 90 |
| Manufacturer Grade | 1125 |
| Coating/Finish | AlCr2O3; TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CoroTurn 107 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3593 |
| Insert Length (Inch) | 3/8 |
| Insert Length (mm) | 9.13 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Secondary Workpiece Material Code | P; S; M |
| Iso Code | SCMT 09 T3 04-MF 1125 |
| Chip Breaker | MF |
| ANSI Size Code | 32.51 |
| ISO Size Code | 09T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
