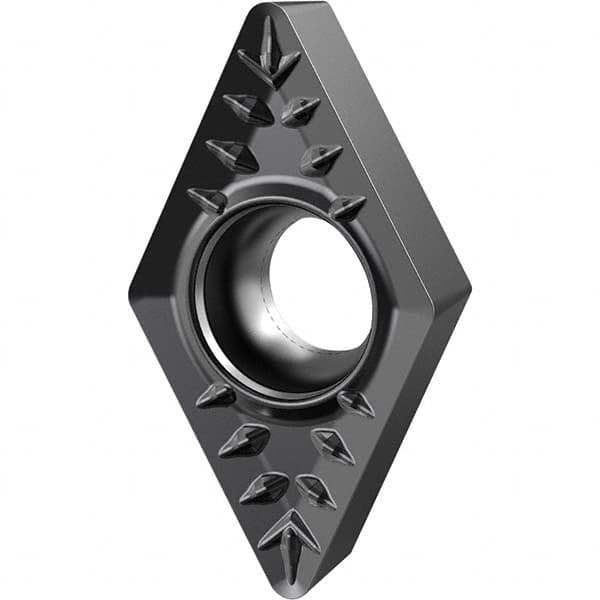

Kennametal - 2152CCGT LF Grade KCS10B Carbide Turning Insert
Item #: 12255188
Brand: Kennametal
Model #: 6686895
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 2152 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2539 |
| Inscribed Circle (Decimal Inch) | 0.1100 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.2539 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | CCGT060208LF |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGT2152LF |
| Series | CCGT |
| Shape | Diamond/Rhombic |
