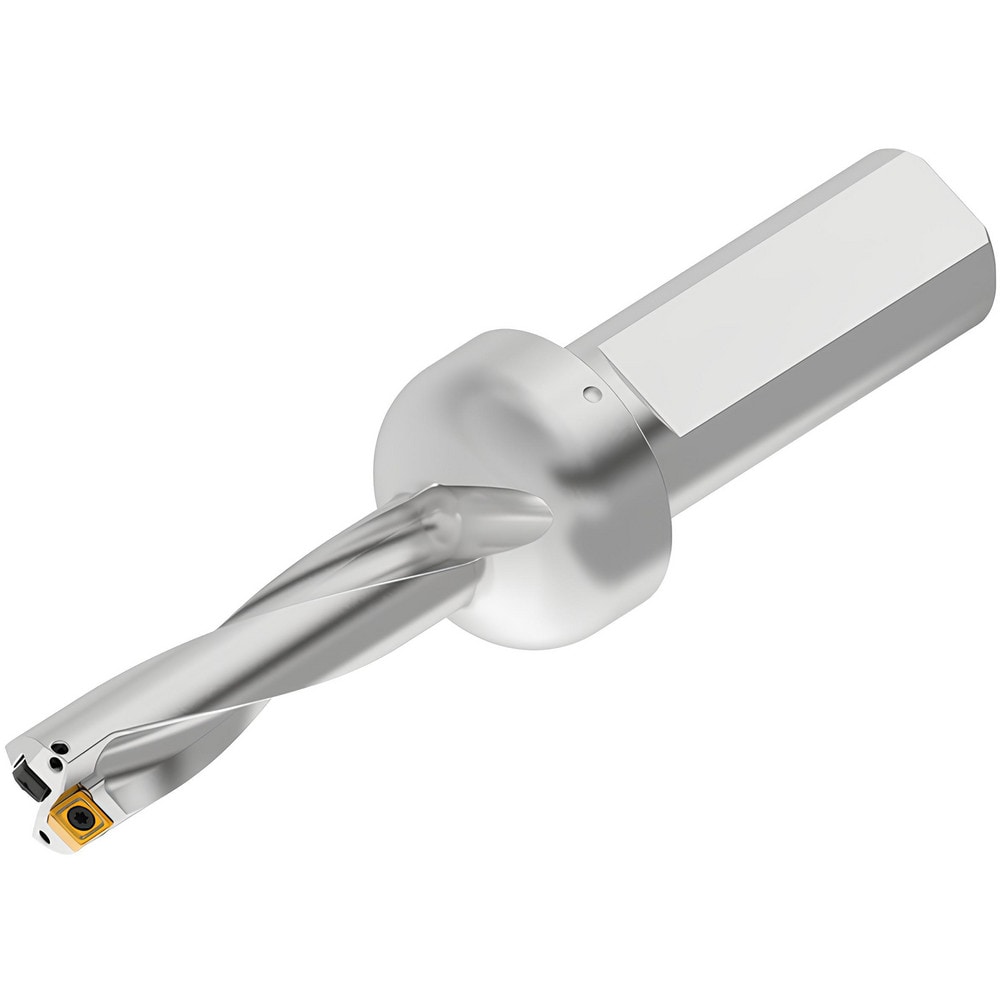

Indexable Insert Drill: DFPR175R4WB25M, 18.00 mm Max Dia, 70.00 mm Max Depth, 4xD, 25.00 mm Shank Dia
Item #: 02490266
Brand: Kennametal
Model #: 7034160
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 060304 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 70.00 |
| Body Length | 90.00 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.2x2.6; 6.5x2.6 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR060304__I; DFPR060304__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M2.2-0.45x5.2T7 |
| Coolant Through | Yes |
