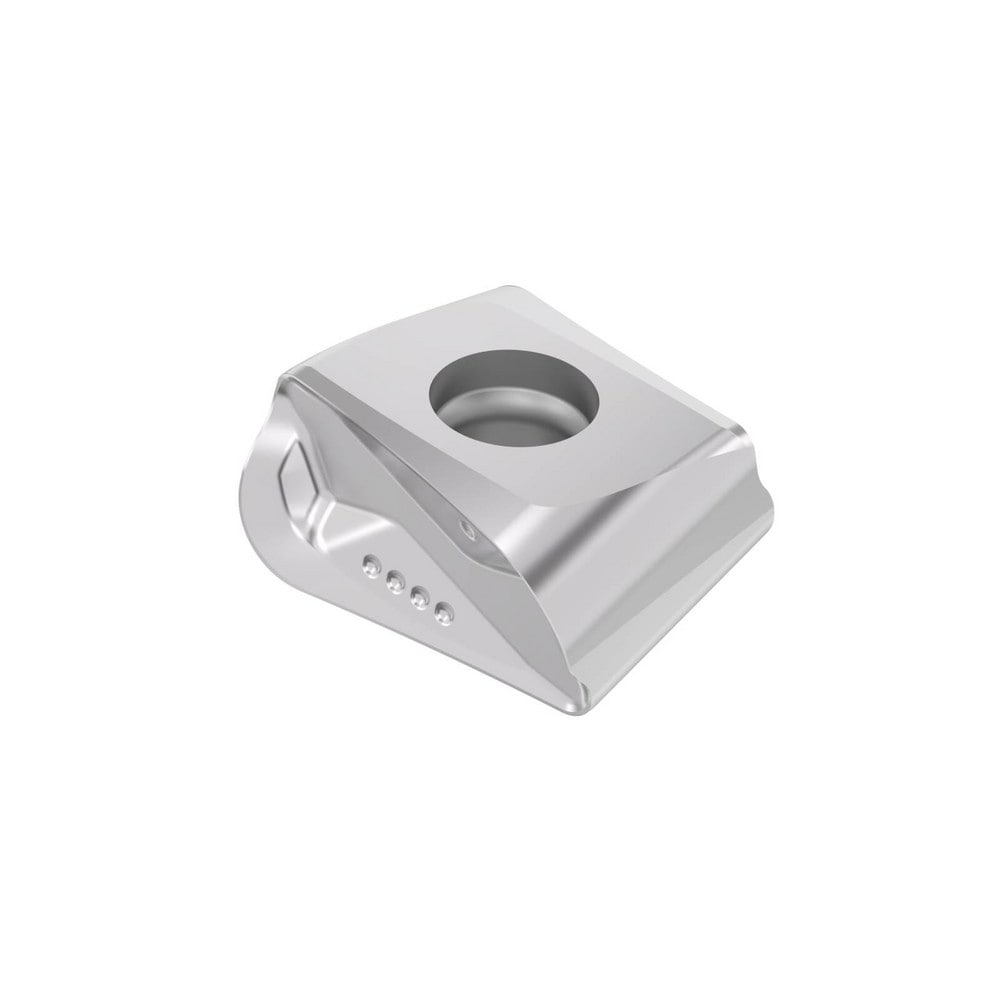

Milling Insert: LOEX120731R-T4-M09 MS2050, Carbide
Item #: 86369683
Brand: Seco
Model #: 10207779
Product Specifications
| Insert Style | LOEX |
| Insert Size | 12 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | MS2050 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3890 |
| Coating/Finish | NbN; TiAlN |
| Relief Angle | 0.000 |
| Insert Size Code | 120731 |
| Material Grade | S20; S30; S10 |
| Inscribed Circle (Decimal Inch) | 0.2953 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Series | LOEX |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Rake | Negative |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | LOEX120731R-T4-M09 |
| Iso Code | LOEX120731R-T4-M09 |
| Standards | ISO; ANSI |
| Rake Angle | 36.000 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 10207779 |
| Cutter Series Compatibility | R217/220.94-12 |
| Chip Breaker | M09 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2953 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5591 |
| Country of Origin | Sweden |
