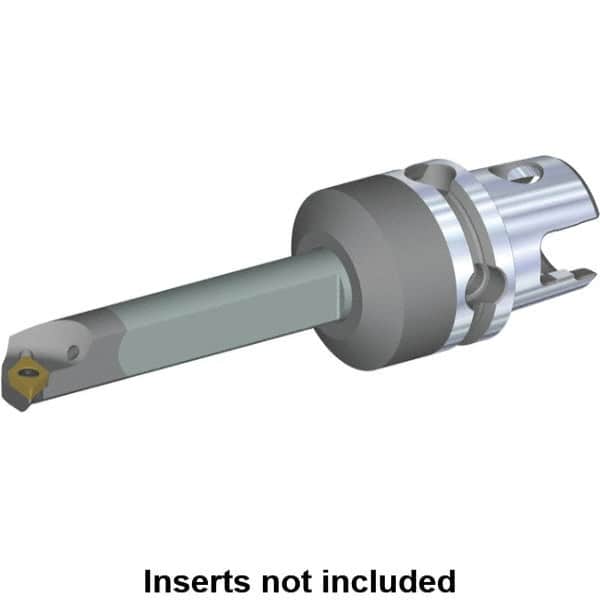

Kennametal - Right Hand Cut, 25mm Min Bore Diam, Size KM50 Carbide Modular Boring Cutting Unit Head - 3-15/16" Max Bore Depth, Through Coolant, Compatible with DP..
Item #: 70652698
Brand: Kennametal
Model #: 3812596
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | KM Micro |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 100.00 |
| Maximum Bore Depth (Decimal Inch) | 3.9370 |
| Insert Style | DP.. |
| Head Length/Projection (mm) | 140.00 |
| Head Length/Projection (Decimal Inch) | 5.5118 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | DP..11T308; DP..3252 |
