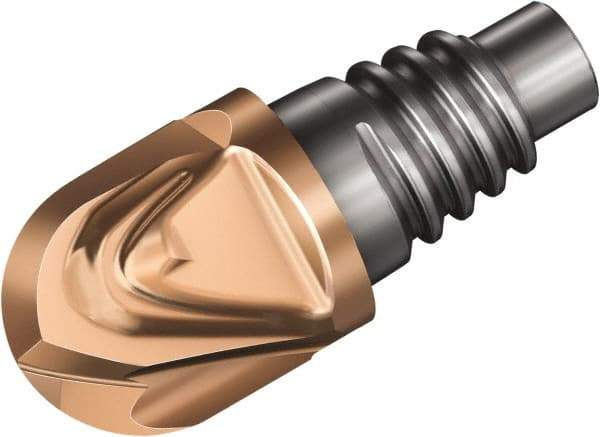

Sandvik Coromant - 316..BM..G G Grade 1030 Carbide Ball Nose Milling Tip Insert - 4 Flutes, 25mm Cutting Diam, 13.5mm Depth of Cut, 25.6mm Extension, 0.4921" Cnr Rad, 40° Helix
Item #: 70600762
Brand: Sandvik Coromant
Model #: 5782717
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | 316..BM..G |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 13.50 |
| Depth of Cut (Decimal Inch) | 0.5315 |
| Number of Flutes | 4 |
| Milling Tip Full Description | CoroMill 316 solid carbide ball nose head for profile milling |
| Corner Radius (Decimal Inch) | 0.4921 |
| Coating Process | PVD |
| Chipbreaker | G |
| Extension From Holder (mm) | 25.60 |
| Extension From Holder (Decimal Inch) | 1.0079 |
| Lead Angle | 0 |
| Included Angle | 15 |
| Helix Angle | 40 |
| Style | 316..BM..G |
| Manufacturers Catalog Number | 5782717 |
