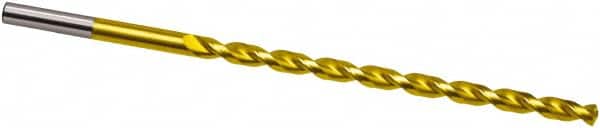

Guhring - 5/32" 130° 2-Flute High Speed Steel Extra Length Drill Bit
Item #: 64896244
Brand: Guhring
Model #: 9006710039700
Features and Benefits
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1563 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Overall Length (mm) | 220.00 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (mm) | 3.97 |
| Flute Length (mm) | 150.00 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 10xD |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | Cone Relief |
| Shank Type | Straight |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 671 |
