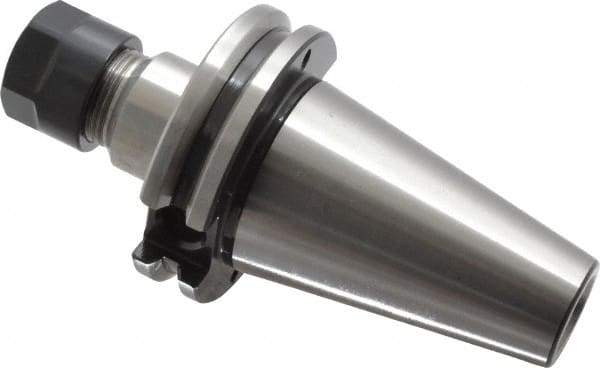

Parlec - 0.51mm to 9.98mm Capacity, 2.62" Projection, CAT40 Taper Shank, ER16 Collet Chuck - 5.307" OAL
Item #: 70561501
Brand: Parlec
Model #: C40-16ERP262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 2.6200 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 9.98 |
| Maximum Collet Capacity (Decimal Inch) | 0.3930 |
| Overall Length (Decimal Inch) | 5.3070 |
| Nose Diameter (Decimal Inch) | 1.1100 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
