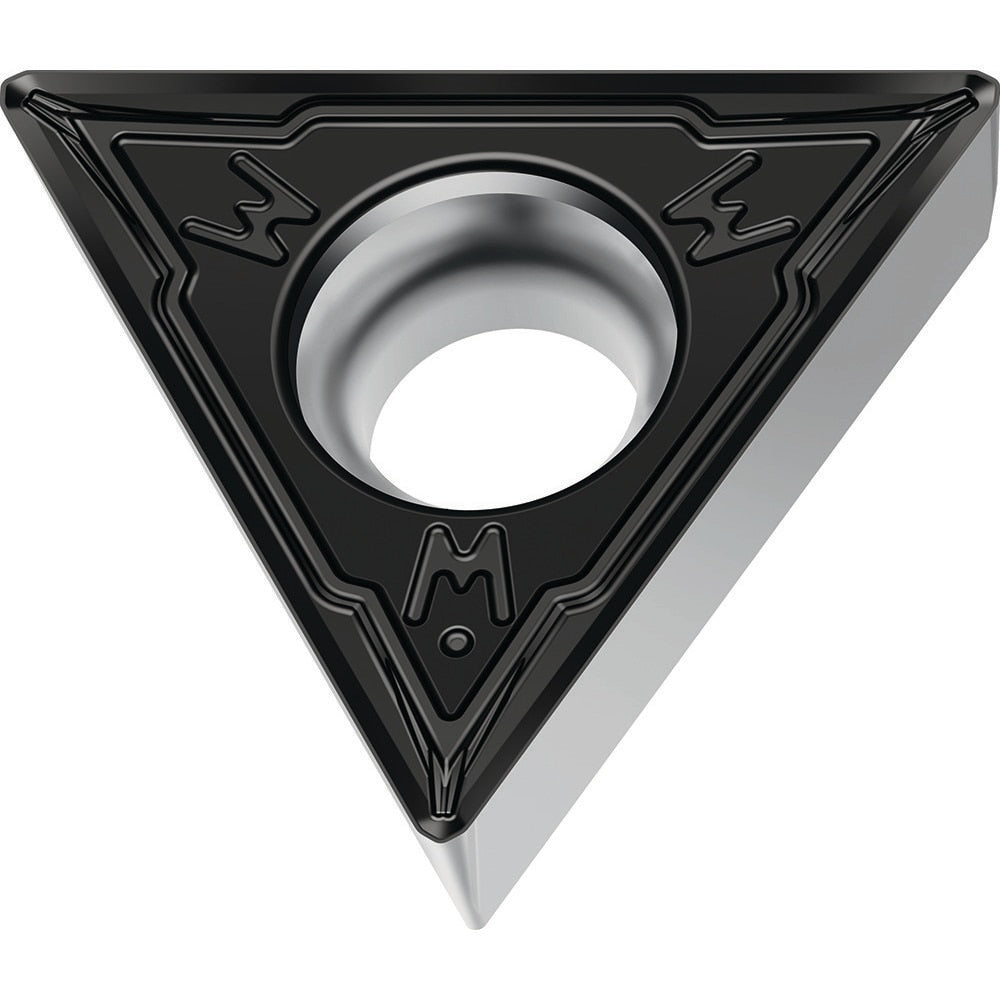

Turning Insert: TCMT181505FW4 WSM20S, Carbide
Item #: 91719567
Brand: Walter
Model #: 8296400
Product Specifications
| ANSI Insert Code | TCMT1.8(1.5)0.5 |
| ISO Insert Code | TCMT090202 |
| Relief Angle | 7.000 |
| Insert Style | TCMT |
| Corner Radius (mm) | 0.20 |
| Included Angle | 60.00 |
| Manufacturer Grade | WSM20S |
| Coating/Finish | TiAlN+Al2O3+(Al) |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Series | TCMT |
| Inscribed Circle (mm) | 5.56 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Chip Breaker Operation | Wiper - Finishing |
| Grade Characteristics | Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.5000 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 9.62 |
| Manufacturers Catalog Number | TCMT090202-FW4 WSM20S |
| Chip Breaker | FW4 |
| Width (mm - 2 Decimals) | 9.62 |
| ANSI Size Code | 1.8(1.5)0.5 |
| ISO Size Code | 090202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 09 |
| Country of Origin | Germany |
