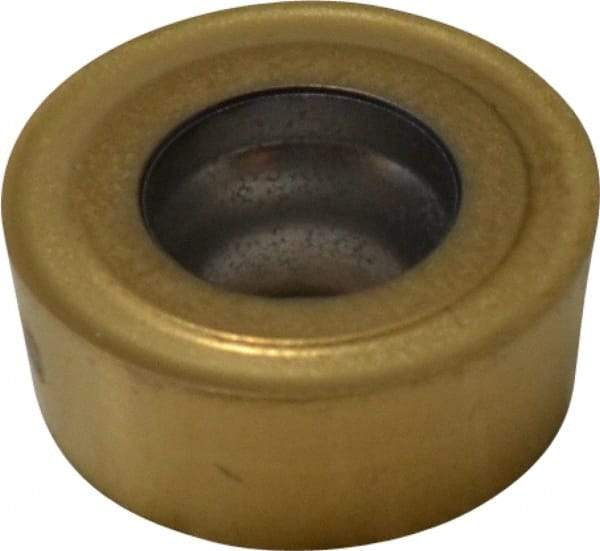

Seco - RCMT1204M0 F1 Grade CP500 Carbide Turning Insert - TiAlN/TiN Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 70485941
Brand: Seco
Model #: 99703
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P; S |
| Insert Holding Method | Screw |
| Shape | Round |
