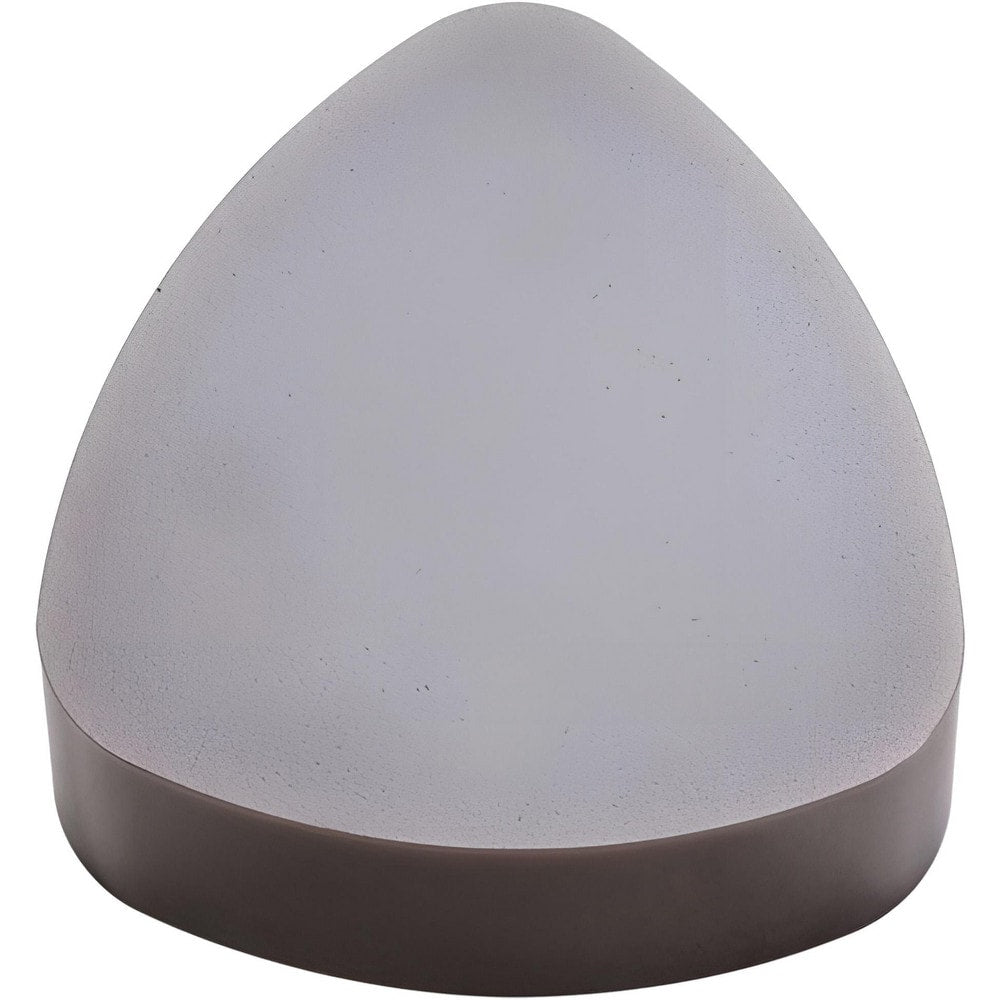

Brand: Ingersoll Cutting Tools / Part #: 6322983
Item #: 67311993
Brand: Ingersoll Cutting Tools
Model #: 6322983
Product Specifications
| Insert Style | TNXN |
| Insert Size Code | 1207 |
| Insert Material | Silicon Nitride |
| Manufacturer Grade | IN76N |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Corner Radius (mm) | 4.50 |
| Insert Hand | Right Hand |
| Series | TNXN |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.5350 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Triangle |
| Rake | Negative |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | TNXN1207N01 |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | TNXN1207N01 IN76N |
| Cutter Series Compatibility | DG1H; DG2H |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 13.5900 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.5350 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2760 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5350 |
