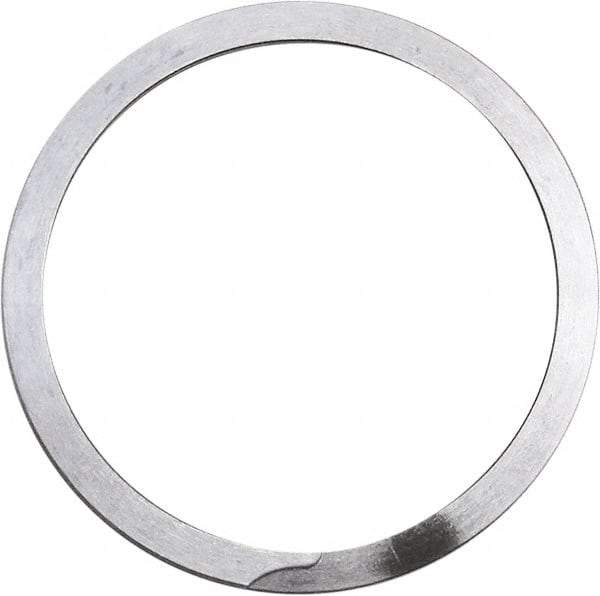

Rotor Clip - 0.062" Thick, Uncoated Finish, Stainless Steel Spiral Internal Retaining Ring - 0.068" Groove Width, 0.054" Groove Depth, 1.858" Groove Diam, Grade 302
Item #: 70231600
Brand: Rotor Clip
Model #: KG-175SJ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spiral |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-3/4 |
| Bore Diameter (Decimal Inch) | 1.7500 |
| Groove Diameter (Decimal Inch) | 1.8580 |
| Groove Width (Decimal Inch) | 0.0680 |
| Inside Diameter (Decimal Inch) | 1.6200 |
| Free Outside Diameter (Decimal Inch) | 1.8760 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Material Grade | 302 |
| Finish/Coating | Uncoated |
| Groove Depth (Decimal Inch) | 0.0540 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | 0.000 to 0.020 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 14320 (Ring Safety Factor); 6680 (Groove Safety Factor) |
| Fastener Standard | AISI 302; AMS-5866 |
