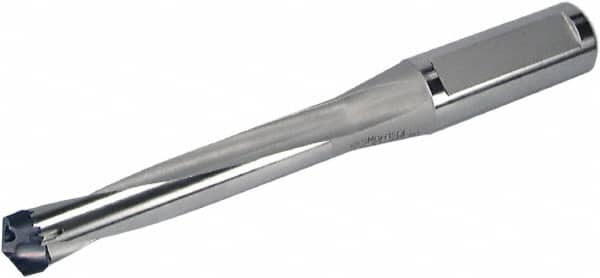

Sumitomo - 21.51 to 22.8mm Diam, 5xD, 125.1mm Max Depth, 25mm Shank Diam, 145.4mm Flute, 201.1mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 70228846
Brand: Sumitomo
Model #: 5L00026
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 21.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.8469 |
| Maximum Drill Diameter (mm) | 22.80 |
| Maximum Drill Diameter (Decimal Inch) | 0.8976 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.9252 |
| Maximum Drill Depth (mm) | 125.10 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 145.40 |
| Flute Length (Decimal Inch) | 5.7244 |
| Body Length (mm) | 145.40 |
| Body Length (Decimal Inch) | 5.7244 |
| Overall Length (mm) | 201.10 |
| Overall Length (Decimal Inch) | 7.9173 |
| Toolholder Material | Steel |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
