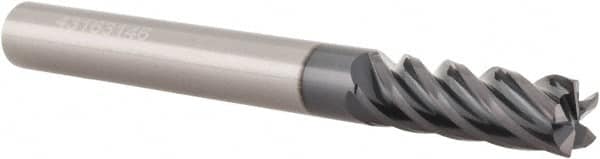

Accupro - 1", 1-1/4" LOC, 1" Shank Diam, 5" OAL, 5 Flute, Solid Carbide Square End Mill
Item #: 70216692
Brand: Accupro
Model #: 546N1000C11
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1 |
| Single or Double End | Single |
| Overall Length (Inch) | 5 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Helix | Yes |
| Variable Index | No |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | Yes |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Neck Length | 2.375 |
