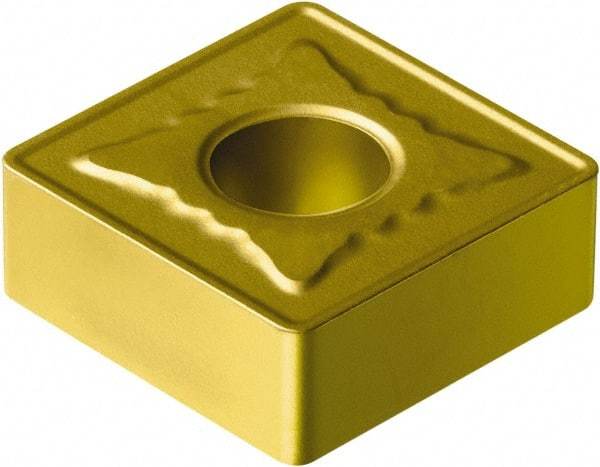

Sandvik Coromant - SNMG642 MR Grade 235 Carbide Turning Insert - TiCN/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 70190061
Brand: Sandvik Coromant
Model #: 5750225
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 642 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.00 |
| Inscribed Circle (Decimal Inch) | 0.7480 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Chip Breaker | MR |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | SNMG190608MR235 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | 5750225 |
| Primary Workpiece Material | M |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 18.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.7185 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
