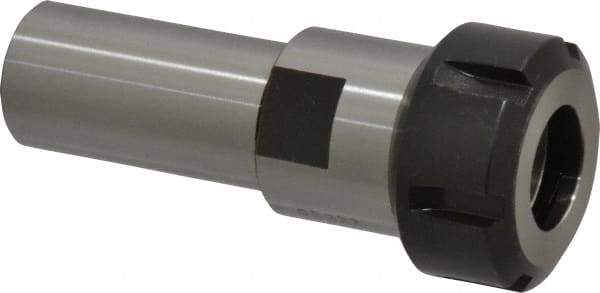

Scully Jones - 1/16" to 0.6299" Capacity, 51mm Projection, Straight Shank, ER25 Collet Chuck - 101mm OAL, 1" Shank Diam
Item #: 70186176
Brand: Scully Jones
Model #: 05222
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Projection (mm) | 51.00 |
| Projection (Decimal Inch) | 2.0100 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0625 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 101.00 |
| Actuator Type | Wrench |
| Shank Length (mm) | 50.00 |
| Hex Diameter (mm) | 42.00 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0008 |
| Coolant Type | Through-Spindle |
