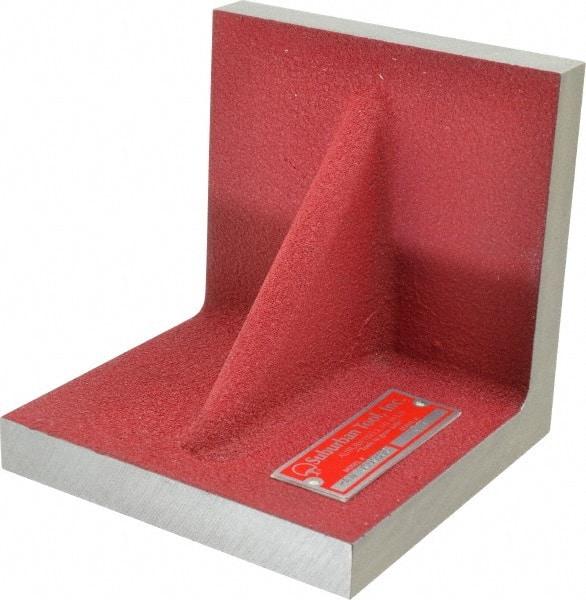

Suburban Tool - 5" Wide x 5" Deep x 5" High Cast Iron Precision-Ground Angle Plate - Standard Plate, Flat Surface, Single Web, 11/16" Thick, Single Plate
Item #: 70141254
Brand: Suburban Tool
Model #: PAW050505G
Exact Tooling IR#: 04
Features and Benefits
Cast iron, also called semi-steel, is extremely strong and ideal for high-heat applications.
Precision ground plates are used for close tolerance layout and inspection set-up.
Slotted angle plates are designed with clamping slots for mounting, layout and inspection operations. They can be used as backing plates and constructed with varying spacing between slots and holes.
| Product Specifications | |
|---|---|
| Width (Inch) | 5 |
| Depth (Inch) | 5 |
| Height (Inch) | 5 |
| Material | Cast Iron |
| Finish Type | Precision-Ground |
| Plate Surface | Flat |
| Plate Style | Standard |
| Plate Design | Single Web |
| Plate Thickness (Inch) | 11/16 |
| Web Thickness (Inch) | 9/16 |
| Parallelism (Decimal Inch) | 0.0005 per 6" |
| Squareness (Decimal Inch) | 0.0005 per 6" |
| Web to Edge (Inch) | 2-1/2 |
| Color | Gray |
| Material Grade | Class 35-40 |
| Single or Pair | Single |
