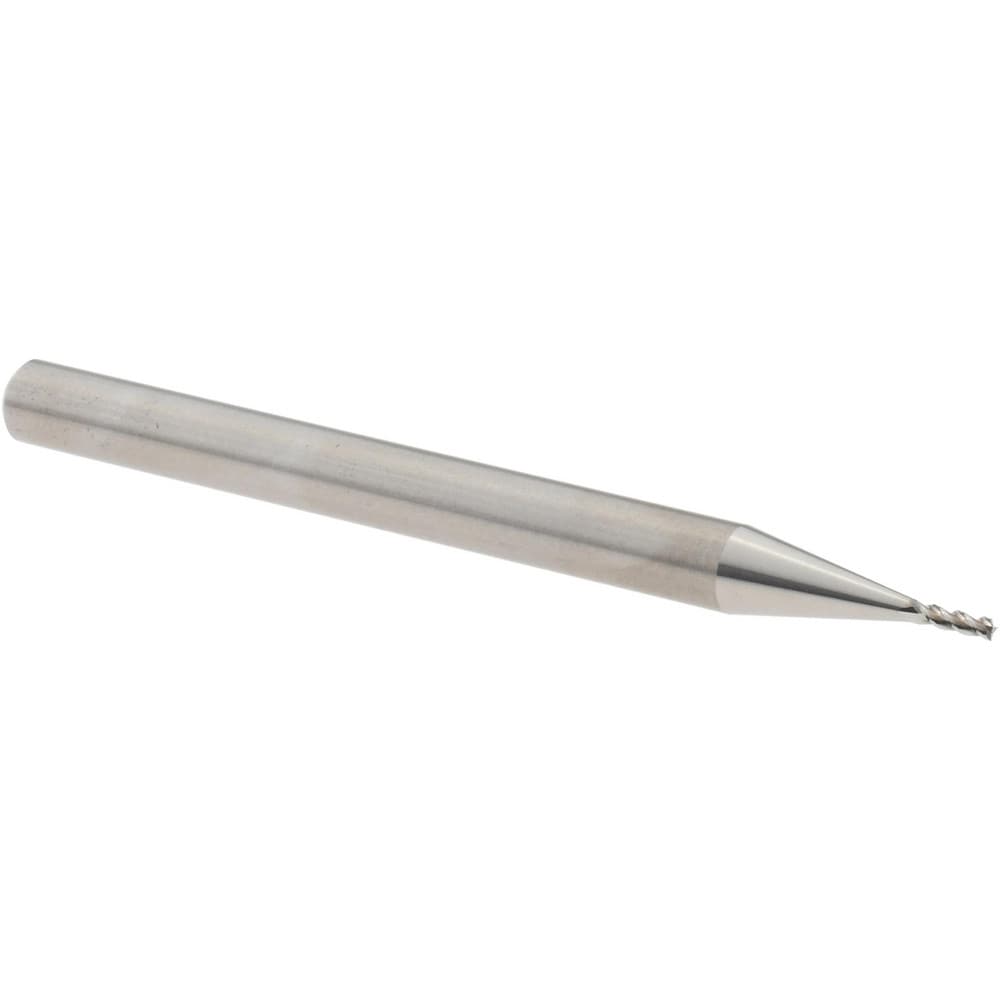

Square End Mill: 1.00 mm Dia, 3.00 mm LOC, 3 Flute, Solid Carbide
Item #: 39036579
Brand: Harvey Tool
Model #: 900422
Product Specifications
| Mill Diameter (mm) | 1.00 |
| Mill Diameter (Decimal Inch) | 0.0394 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1181 |
| Length of Cut (mm) | 3.00 |
| Shank Diameter (mm) | 4.00 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 50.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 42 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Series | Variable Helix End Mills for Aluminum Alloys - Square |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
