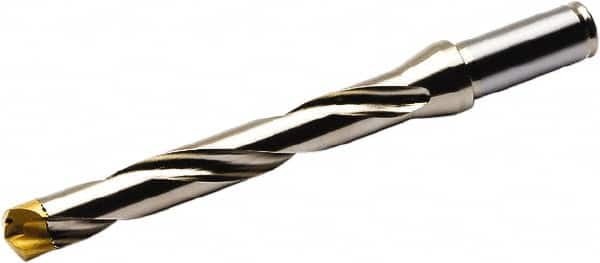

Seco - 17 to 17.99mm Diam, 7xD, 130mm Max Depth, 20mm Shank Diam, 144.5mm Flute, 212.5mm OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 70104237
Brand: Seco
Model #: 05093
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (mm) | 17.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7083 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 5.1181 |
| Maximum Drill Depth (mm) | 130.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 144.50 |
| Flute Length (Decimal Inch) | 5.6890 |
| Body Length (mm) | 162.50 |
| Body Length (Decimal Inch) | 6.3976 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 212.50 |
| Overall Length (Decimal Inch) | 8.3661 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
