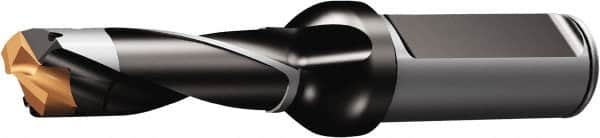

Sandvik Coromant - 12 to 12.49mm Diam, 3.17581xD, 1.5504" Max Depth, 5/8" Shank Diam, 4.0551" OAL, Replaceable Tip Drill - 870-1240-10-PM Insert, 10 Seat Size, 870..LX-3 Toolholder, Series CoroDrill 870
Item #: 70080056
Brand: Sandvik Coromant
Model #: 6035635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 3.17581xD |
| Maximum Drill Depth (Decimal Inch) | 1.5504 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | 870-1240-10-PM |
| Insert Seat Size | 10 |
| Toolholder Style | 870..LX-3 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (Decimal Inch) | 0.0748 |
| Body Length (Decimal Inch) | 1.6535 |
| Overall Length (Decimal Inch) | 4.0551 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.9646 |
